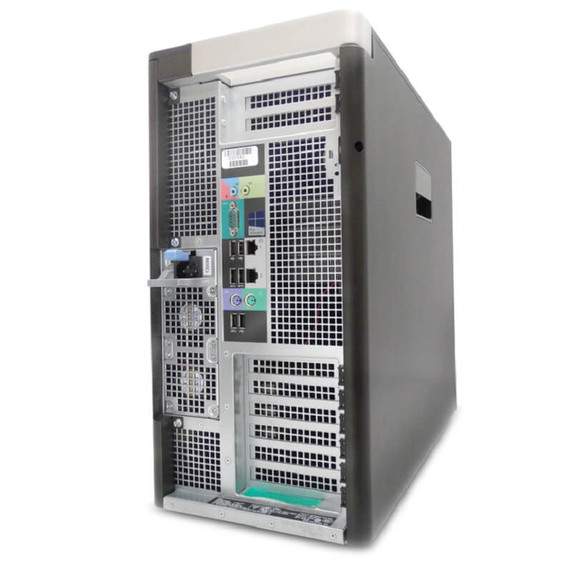

Dell Precision 7910 AutoCAD 2x E5-2643 V3 12 Cores 3.4Ghz 32GB 1TB NVMe K620 Win 10
- Ships within 1-5 Business Days.
- Certified for AutoCAD
- Operating System:
- Windows 10 Pro
- Graphic Card:
- NVIDIA Quadro K620
- Precision T7910
AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) - Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD
Processor: Dual Intel Xeon E5-2643v3 Six Core 3.4Ghz Processors 12 Cores, 24 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)
Memory: 32GB DDR4-2133 Memory. Supports up to 1024GB of total memory, Quad channel memory up to 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU).
PCIe Solid State Drive: 1TB NVMe M.2 SSD with PCIe Adapter Card
Drive Bays: Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives. Optional PCIe controller required for RAID 5 support.
Raid Controller: Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated Intel controller (6Gb/s) SATA ports for optical drives.
Graphics: Nvidia Quadro K620 2GB GDDR3 Graphic Card, DirectX 11.2 (Certified Hardware for AutoCAD 2019)
Operating System: Windows 10 Professional 64-Bit Pre-Installed
Software: AutoCAD Software is not included
Power Supply: 1300W 90% Efficient wide-ranging, active Power Factor Correction
Optical: DVDRW Drive
Networking Intel I217 & I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support .
Slots: (2) PCIe x16 Gen 3 [(2) more with 2nd CPU]; (1) PCIe x16 Gen 3 [wired as x4 – Slot 1], (1) PCIe x16 Gen 2 [wired as x4]; (1) PCI 32Bit.
Front Ports: 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone, 2 RJ45
Rear Ports: 3 USB 2.0, 3 USB 3.0, 2 PS2, 1 Serial, 1 Audio Line Out, 1 Audio Line In, 1 RJ45
Internal Ports: 1 USB 2.0, 8 SAS 12Gbps (Supports 6Gbps SATA as well)
Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.
Condition: Seller refurbished unit may have minor scratches and scuffs
*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
