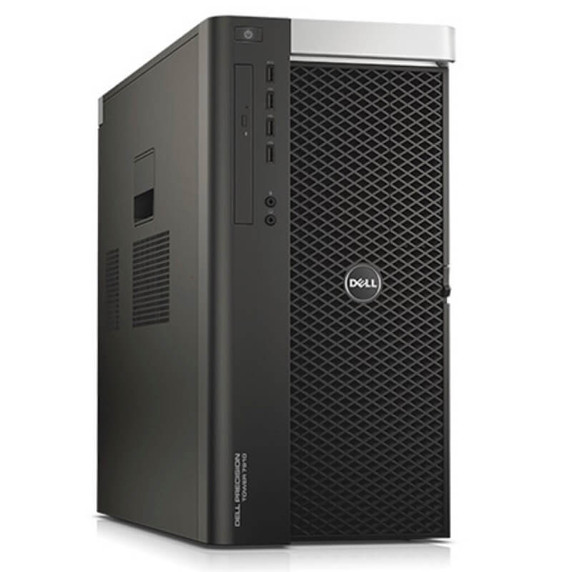

Dell Precision 7910 AutoCAD Workstation E5-2643 V3 6 Cores 12 Threads 3.4Ghz 128GB 2TB SSD Quadro K2200 Win 10 Pro
- Ships within 1-5 Business Days.
- Certified for AutoCAD
- Operating System:
- Windows 10 Pro
- Graphic Card:
- NVIDIA Quadro K2200
- Precision T7910
AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) - Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD
Processor: Single Intel Xeon E5-2643 V3 Six Core 3.4Ghz Processor 6 Cores, 12 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)
Memory: 128GB DDR4-2133 Memory. Supports up to 1024GB of total memory, Quad channel memory up to 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU).
Storage: New 2TB 6Gb/s SATA Solid State Drive
Drive Bays: Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives. Optional PCIe controller required for RAID 5 support.
Raid Controller: Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated Intel controller (6Gb/s) SATA ports for optical drives.
Graphics: Nvidia Quadro K2200 4GB GDDR5 Graphic Card, DirectX 11.2 - 1 DVI, 2 DisplayPort - Support up to 3 active monitors (Certified Hardware for AutoCAD 2019)
Operating System: Windows 10 Professional
Software: AutoCAD Software is not included
Power Supply: 1300W 90% Efficient wide-ranging, active Power Factor Correction
Optical: DVDRW Drive
Networking: Intel I217 & I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support .
Slots: (2) PCIe x16 Gen 3 [(2) more with 2nd CPU]; (1) PCIe x16 Gen 3 [wired as x4 – Slot 1], (1) PCIe x16 Gen 2 [wired as x4]; (1) PCI 32Bit.
Front Ports: 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone, 2 RJ45
Rear Ports: 3 USB 2.0, 3 USB 3.0, 2 PS2, 1 Serial, 1 Audio Line Out, 1 Audio Line In, 1 RJ45
Internal Ports: 1 USB 2.0, 8 SAS 12Gbps (Supports 6Gbps SATA as well)
Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.
Condition: Seller refurbished unit may have minor scratches and scuffs
*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
