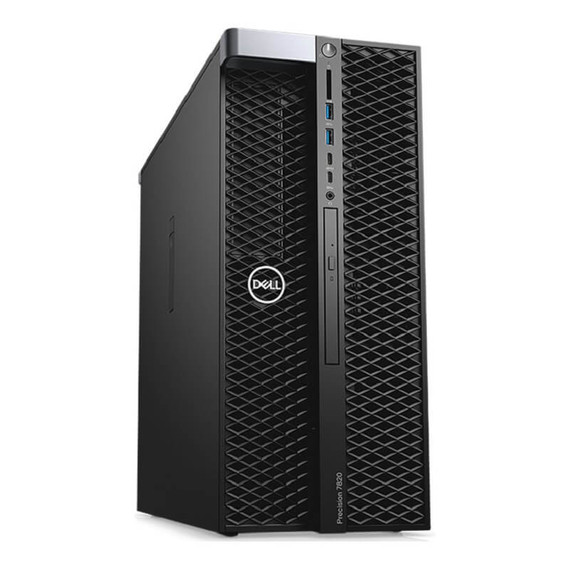

Dell Precision 7820 AutoCAD Workstation Gold 6144 8 Cores 16 Threads 3.5Ghz 96GB 500GB NVMe Quadro P2200 Win 11 Pro

AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) - Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD

Processor: Single Intel Xeon Gold 6144 Eight Core 3.5Ghz Processor 8 Cores, 16 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 96GB DDR4-2666 Memory. Supports up to 768GB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with 6 DIMM Slots per processor. Memory speed is dependent on specific Intel Xeon Scalable Processor installed.

PCIe Solid State Drive: 500GB NVMe M.2 SSD with PCIe Adapter Card

Drive Bays: Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. Up to 2 front accessible (hot plug) M.2/U.2

Raid Controller: Integrated Intel chipset SATA controller (6Gb/s) with 6 SATA ports plus 2 dedicated ports for optical drives. Intel RSTe software RAID 0,1,5,10

Graphics: Nvidia Quadro P2200 5GB GDDR5 Graphic Card, DirectX 12 - 4 DisplayPort - Support up to 4 active monitors (Certified Hardware for AutoCAD 2019)

Operating System: Windows 11 Professional

Software: AutoCAD Software is not included

Power Supply: 950W(input voltage 100VAC - 240VAC) –90% efficient (80PLUS Gold Certified) Externally accessible/removable/lockable

Optical: DVDRW Drive

Networking: Intel i219 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support

Slots: All slots PCIe Gen 3: (2) PCIe x16, (1) PCIe x16 wired as x8, (1) PCie x16 wired as x4, (1) PCIe x16 wired as x1, 1 PCI 32/33

Front Ports: (2) USB 3.1 Gen 1 Type A, (2) USB 3.1 Type C, (1) Universal Audio Jack

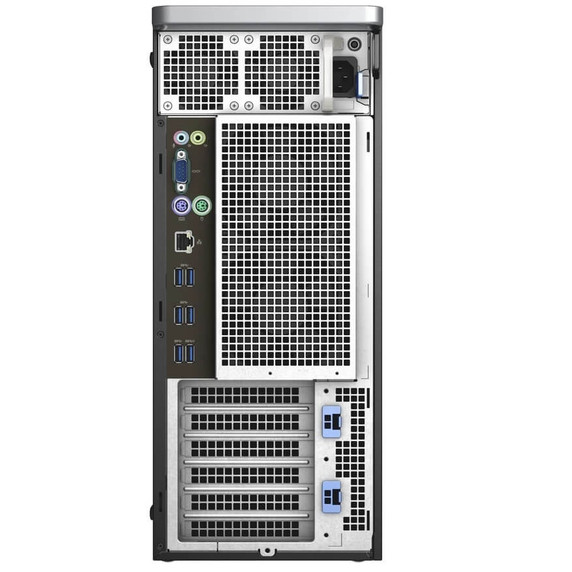

Rear Ports: (6) USB 3.1 Gen 1 Type A, (1) Serial, (1) RJ45 Network, (2) PS2, (1) Audio Line out, (1) Audio Line in/Microphone

Internal Ports: (1) USB 2.0,(1) 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports), (6) SATA @6Gb/s plus 2 SATA for optical

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Condition: Seller refurbished unit may have minor scratches and scuffs

*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
