The 7910 has a 2U design and uses one or two E5-2600 v3 and v4 Intel Xeon processor. The workstation includes 16 DIMM slots for 2133MHz DDR4 quad-channel memory that uses reliable memory technology to eliminate any errors you may encounter. You have multiple options of graphic cards, from AMD FirePro, Nvidia Quadro and Tesla GPU.
- Intel Xeon E5-2600 v3 Processor Family
- Up to 36 Cores
- Up to 1TB of 2133MHz DDR4 Memory
- Up to 5 Year Warrenty Available
Processor: Intel Xeon E5-2600 V3 and V4 series processors up to 36 Total Cores with up to 2x 8.0GT/s and up to Hyperthreading available on select processors
Memory: Supports up to 1TB of total memory, Quad channel memory up to 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU). . Note: Price for CTO are based on 12800R Memory Modules.
Drive Bays: Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives. Optional PCIe controller required for RAID 5 support.
Storage Controller: Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated Intel controller (6Gb/s) SATA ports for optical drives.
Graphics: Support for 4 PCI Express® x16 Gen 2/Gen 3 graphics cards - up to 675W (total 3 x 225W graphics cards in 3 slots&"
Operating System: Compatible with the following:
- Windows 10 Professional 32-Bit or 64-Bit
- Windows 7 Ultimate 32-Bit or 64-Bit
- Windows 7 Professional 32-Bit or 64-Bit
- Windows 7 Ultimate 32-Bit or 64-Bit with XP mode
- Windows Vista Ultimate SP1, 32-Bit or 64-Bit
- Windows Vista Business SP1, 32-Bit or 64-Bit
- Red Hat Enterprise Linux WS v.5.3 EM64T (Also certified to run Red Hat Enterprise Linux Version 4.7 64-Bit
Power Supply: 1300W 90% Efficient wide-ranging, active Power Factor Correction
Dimensions: 50 Lbs, 21.5'' x 8.5'' x 17.2'' (L x W x H)
Networking: Intel I217 & I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support .
Slots: (2) PCIe x16 Gen 3 [(2) more with 2nd CPU]; (1) PCIe x16 Gen 3 [wired as x4 – Slot 1], (1) PCIe x16 Gen 2 [wired as x4]; (1) PCI 32Bit.
Front Ports: 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone, 2 RJ45

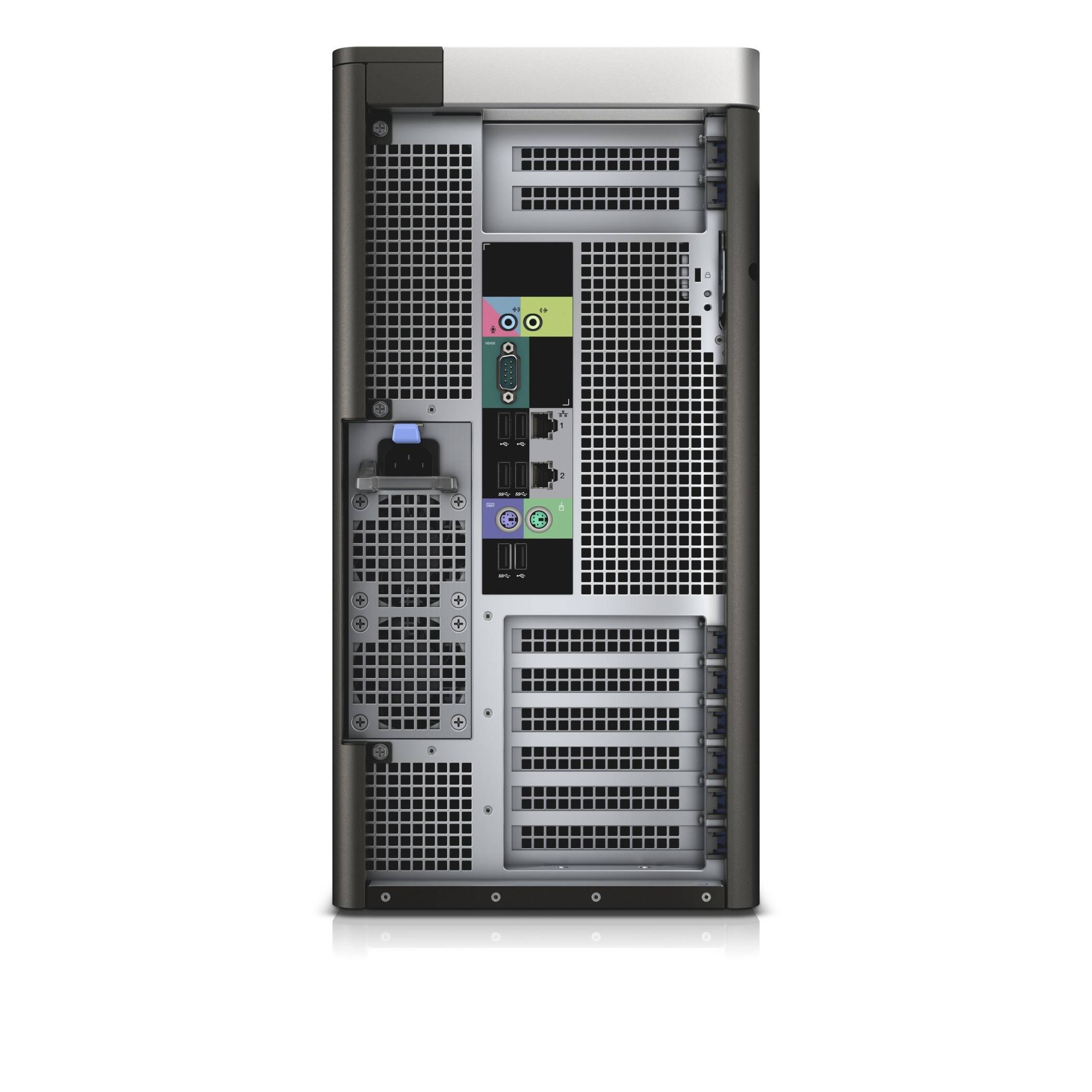

Rear Ports: 3 USB 2.0, 3 USB 3.0, 2 PS2, 1 Serial, 1 Audio Line Out, 1 Audio Line In, 1 RJ45I
Internal Ports: 1 USB 2.0, 8 SAS 12Gbps (Supports 6Gbps SATA as well)
