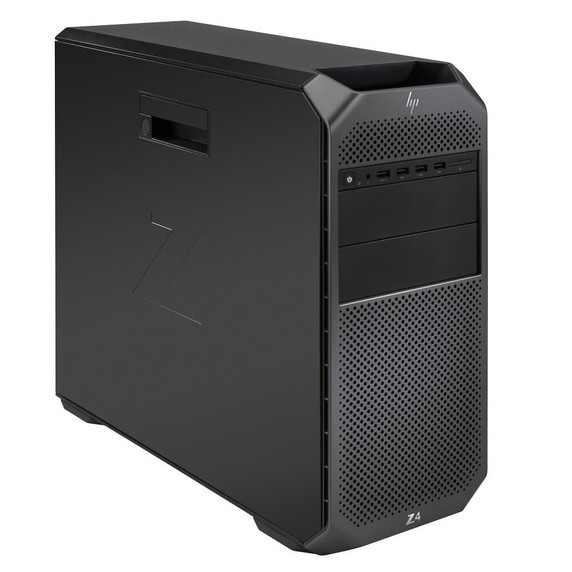

HP Z4 G4 AutoCAD Workstation W-2125 4 Cores 8 Threads 4Ghz 64GB 500GB NVMe Radeon Pro WX 7100 Win 10 Pro

AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) - Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD

Processor: Single Intel Xeon W-2125 Quad Core 4Ghz Processor 4 Cores, 8 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 64GB DDR4-2666 Memory. Supports up to 512GB of total memory, Four channel memory up to 2666MHz DDR4 ECC memory, 2 DIMMs per Channel, 8 DIMM Slots.

PCIe Solid State Drive: 500GB NVMe M.2 SSD with PCIe Adapter Card

Drive Bays: (2) Internal 3.5" bays (all 2 include acoustic dampening rail assemblies). (2) External 5.25" Bays

Raid Controller: Onboard SATA Controller, Raid 0,1,5,10

Graphics: AMD Radeon Pro WX 7100 8GB GDDR5 Graphic Card, DirectX 12 - 4 Mini DisplayPort - Support up to active monitors (Certified Hardware for AutoCAD 2019)

Operating System: Windows 10 Professional

Software: AutoCAD Software is not included

Power Supply: 750W 90% efficient with 2 graphics power adapters

Optical: DVDRW Drive

Networking: 2 RJ-45 to integrated Integrated Intel I219LM GbE LAN

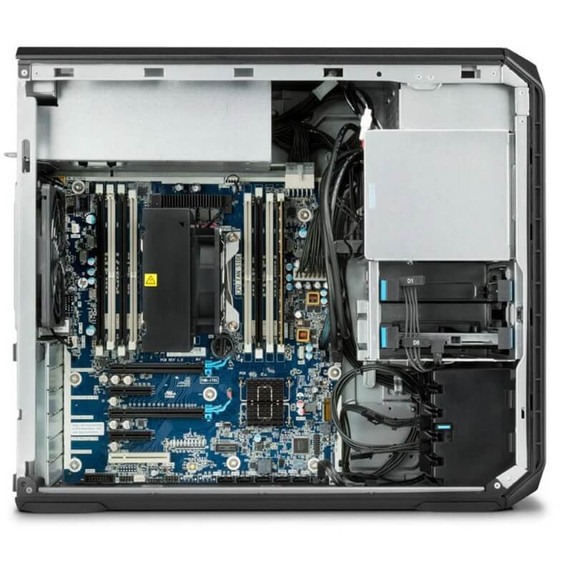

Slots: Slot 1: PCI Express Gen3 x16 (from CPU), Slot 2: PCI Express Gen3 x4 (from PCH) with open-ended connector*, Slot 3: PCI Express Gen3 x16 (from CPU), Slot 4: PCI Express Gen3 x4 (from PCH) with open-ended connector*, Slot 5: PCI Express Gen3 x8 (from CPU) with open-ended connector*, , and M.2 Slot 1: M.2 PCIe Gen 3 x4 (from CPU) up to 80mm storage devices

Front Ports: Power button with power/fault LED, 1 Headset audio port, 4 USB 3.1 G1 Type A (1

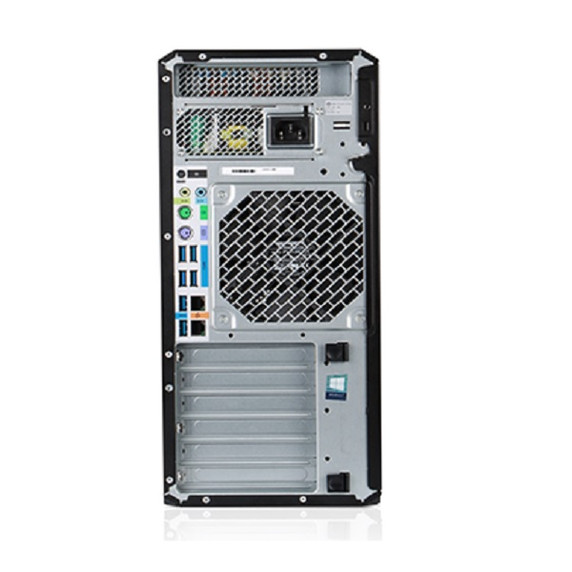

Rear Ports: 6x USB 3.1 G1 Type-A, 2x 1GbE LAN ports (1x supporting Intel AMT), Audio: 1 Line out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1 Rear power button

Internal Ports: 1 USB 3.1 G1 single-port header;1 USB 2.0 single-port header;1 USB 2.0 dual-port header

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Condition: Seller refurbished unit may have minor scratches and scuffs

*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
