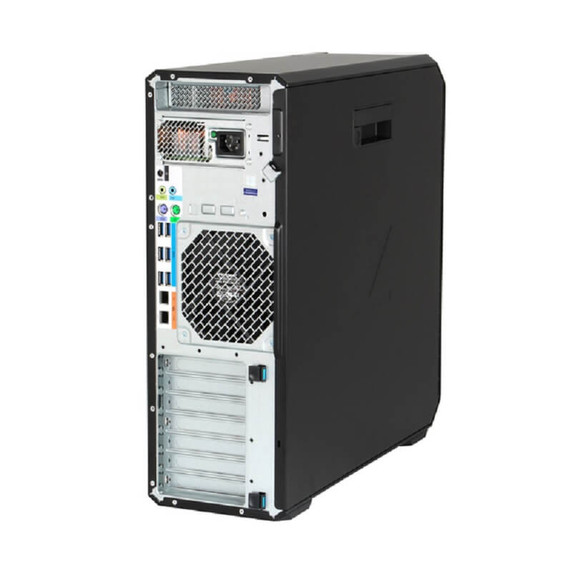

HP Z6 G4 AutoCAD Gold 6144 8C 3.5Ghz 96GB 500GB NVMe P5000 Win 10

AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) - Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD

Processor: Single Intel Xeon Gold 6144 Eight Core 3.5Ghz Processor 8 Cores, 16 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 96GB DDR4-2666 Memory. Supports up to 768GB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMS on the optional 2nd CPU Riser)

PCIe Solid State Drive: 500GB NVMe M.2 SSD with PCIe Adapter Card

Drive Bays: (2) Internal 3.5" bays (all 2 include acoustic dampening rail assemblies). (2) External 5.25" Bays

Raid Controller: Onboard SATA Controller, Raid 0,1,5,10

Graphics: Nvidia Quadro P5000 16GB GDDR5 Graphic Card, DirectX 12 - 4 Mini DP 1.4, 1 DVI-D DL - Support up to 5 active monitors (Certified Hardware for AutoCAD 2019)

Operating System: Windows 10 Professional

Software: AutoCAD Software is not included

Power Supply: 1000W 90% Efficient Power Supply

Optical: DVDRW Drive

Networking: 2 RJ-45 to integrated Integrated Intel I219LM GbE LAN

Slots: Slot 1: PCI Express Gen3 x4 - CPU with open-ended connector, Slot 2: PCI Express Gen3 x16 - CPU, Slot 3: PCI Express Gen3 x4 - PCH with open-ended connector*, Slot 4: PCI Express Gen3 x8 – CPU with open-ended connector (slot converts to x4 electrical when SSD is installed in 2nd M.2 slot)*, Slot 5: PCI Express Gen3 x16 - CPU, Slot 6: PCI Express Gen3 x4 - PCH with open-ended connector*, and M.2 Slot 1: M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices

Front Ports: Power button, 1 Headset audio port, 4 USB 3.1 G1 Type A (1 charging)

Rear Ports: 6 USB 3.1 G1 (aka USB 3.0) Type A ports, 2 1Gbe LAN ports (1x supporting Intel® AMT), Audio: 1 Line out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1 Rear power button

Internal Ports: 1 USB 3.1 G1 (aka USB 3.0) single-port header;1 USB 2.0 single-port header;1 USB 2.0 dual-port header

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Condition: Seller refurbished unit may have minor scratches and scuffs

*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
