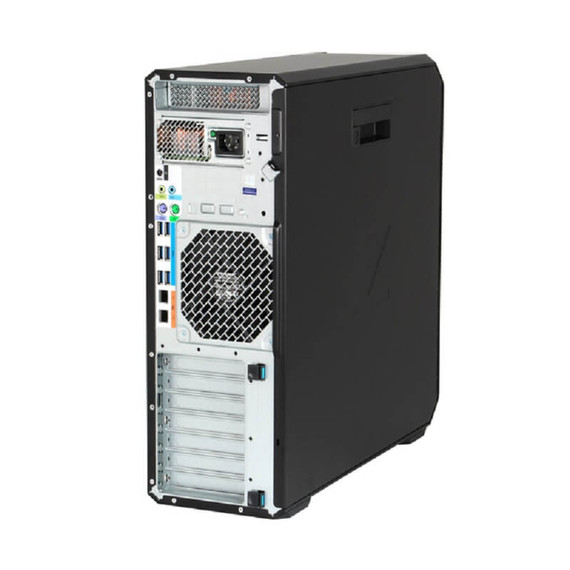

HP Z6 G4 Gold 6148 20C 2.4Ghz 96GB RAM 250GB NVMe 2TB WX 7100 Win 10

HP Z6 G4 Workstation is the latest and greatest from HP Z Series. This top of the line workstation has dual sockets for ultimate scalability and performance. Power through your most complex applications efficiently and rapidly with a new generation of 6-Channel Intel Scalable Xeon Processors with up to 28 cores per processor. Thats 56 cores per processor hyperthreading! Has room for up 78GB of DDR4 RAM with speeds up to 2666MT/s with select CPUs (Max ram requires dual processors). The new strategically design places vents and ducts throughout the system for streamline airflow for ultra-quiet performance. This system is ideal for animation, 3D rendering, and video editing.

Model: HP Z6 G4 Workstation.

Processor: Single Intel Xeon Gold 6148 Twenty Core 2.4Ghz Processor. 20 Total Cores, 40 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).

Memory: 96GB. Supports up to 768GB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMS on the optional 2nd CPU Riser) .

Storage: 250GB NVMe M.2 SSD and 2TB 7.2K PC SATA (Additional solid state or hard drive configurations available).

Storage Controller: Onboard SATA Controller, Raid 0,1,5,10

Expansion Bays:

• 2 internal 3.5" bays (with acoustic dampening rail assemblies pre-installed)
• 2 external 5.25" bays
• 1 dedicated 9.5mm slim optical disk drive bay

Interface Support:

• 6 channel SATA 6.0 Gb/s interface, supports Raid 0/1/5/10
• 6 channels are eSATA configurable for use with eSATA CTO/AMO Kit (No hot plug / hot swap supported)
• USB 2.0, USB 3.1 G1 (aka USB 3.0), USB 3.1 G2 (optional)

Graphics: AMD Radeon Pro WX 7100 8GB GDDR5 Graphic Card Ports: (4) DP 1.4 (Additional graphic cards available). Support for 2 PCI Express x16 Gen 3 graphics cards -includes two 6-pin graphics power cables.

Operating System: Windows 10 Professional 64-Bit Pre-Installed.

Power Supply: 1000W 90% Efficient Power Supply

Optical Drive(s): DVDRW Drive.

Expansion Slots:

• Slot 1: PCI Express Gen3 x4 - CPU with open-ended connector
• Slot 2: PCI Express Gen3 x16 - CPU
• Slot 3: PCI Express Gen3 x4 - PCH with open-ended connector*
• Slot 4: PCI Express Gen3 x8 – CPU with open-ended connector (slot converts to x4 electrical when SSD is installed in 2nd M.2 slot)*
• Slot 5: PCI Express Gen3 x16 - CPU
• Slot 6: PCI Express Gen3 x4 - PCH with open-ended connector*
• M.2 Slot 1: M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
• M.2 Slot 2: M.2 PCIe Gen 3 x4 - CPU up to 80mm storage devices
• * Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a lower bandwidth connector/slot.

Networking: 2 RJ-45 to integrated Integrated Intel I219LM GbE LAN

Front Ports:

• Included: Power button, 1 Headset audio port, 4 USB 3.1 G1 Type A (1 charging)
• Optional: Power button, 1 Headset audio port, 2 USB 3.1 G2 Type C, 2 USB 3.1 G1 Type A (1 charging)

Rear Ports:

• Included: 6 USB 3.1 G1 (aka USB 3.0) Type A ports, 2 1Gbe LAN ports (1x supporting Intel® AMT), Audio: 1 Line out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1 Rear power button
• Optional: 1 serial port (cable up to rear bulkhead)

Internal Ports:

• 1 USB 3.1 G1 (aka USB 3.0) single-port header
• 1 USB 2.0 single-port header
• 1 USB 2.0 dual-port header

Audio Controller: Integrated Realtek HD ALC221 Audio

Speakers: Internal Speaker

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Dimensions: 50 Lbs, 18.3'' x 6.65'' x 17.5'' (L x W x H)

Condition: Refurbished - Fully Tested. Seller refurbished units may have minor cosmetic blemishes.

*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
