HP Proliant DL380 Gen9

DL380 Server

The DL380 is a 2U 6-core rack mountable server perfect for your home office, or cororpate workplace. There are 24 DIMM slots for a maximum of 384GB of DDR4 memory. The main features to look forward to are UEFI BIOS, administrator password and a serial port I/O control.


Specifications

Processor:

  • Intel E5-2600v3 or E5-2600v4 Processor Family
  • 1 or 2 processors
  • 4, 6, 8, 10, 12, 14, 16, 18, 20, or 22 Cores
  • Up to 3.5Ghz
  • Up to 55MB L3 Cache

Memory: Up to 3TB (24 DIMM slots, 12 per processor): 4GB/8GB/16GB/32GB/64GB/128GB ECC DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.

I/O Slots: (6) Maximum - For detail descriptions reference the QuickSpecs

Raid Controllers:

  • Dynamic Smart Array B140i and/or
  • H240 Host Bus Adapter and/or
  • Smart Array P840

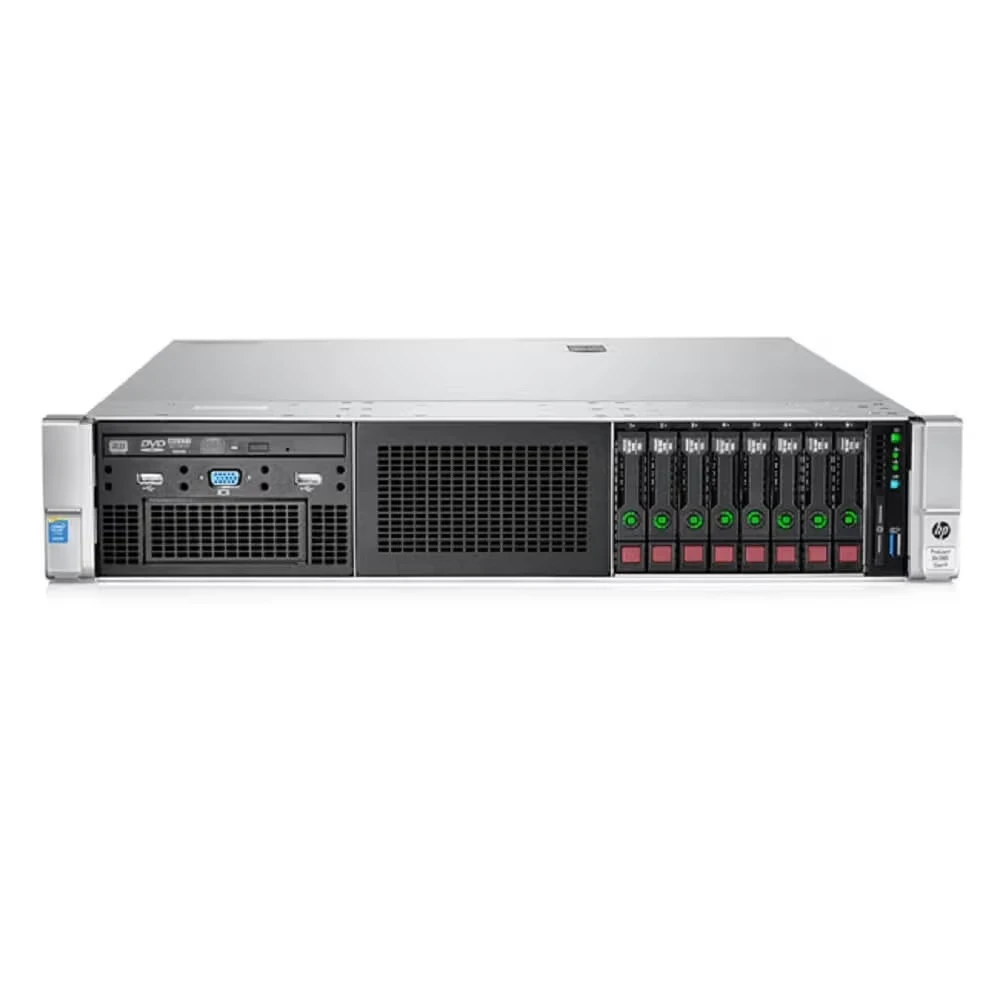

Drive Bays:

  • 8 SFF with optional Universal Media Bay, 8 SFF bay or 6 NVME drive options or
  • 24 SFF plus optional 2 SFF drives rear or
  • 12 LFF plus optional 3 LFF drives rear

Storage:

  • Hot Plug SFF SAS, Up to 52.0TB, 24+2 x 2TB (with optional rear SFF drive cage)
  • Hot Plug SFF SATA, Up to 52.0TB, 24+2 x 2TB (with optional SFF drive cage)
  • Hot Plug LFF SAS, Up to 150.0TB, 12+3 x 10TB (with optional rear LFF drive cage)
  • Hot Plug LFF SATA, Up to 150.0TB, 12+3 x 10TB (with optional rear LFF drive cage)
  • Hot Plug SFF SATA SSD, Up to 99.84TB, 24+2 x 3.84TB (with optional rear SFF drive cage)
  • Hot Plug LFF SATA SSD, Up to 57.6B 12+3 x 3.84TB (with optional rear LFF drive cage)
  • Hot Plug SFF NVMe PCIe SSD, Up to 12TB NVMe + 36TB SFF, 6x2TB NVMe plus 36TB with 18 SFF (Bay 1, bay 3 and optional rear drive support)

Embedded Nic: Quad Port 331i 1GB Network Adapter

Power Supply: 500W, 800W, or 1400W Redundant Power Supplies

Remote Managememt:

  • iLO Management (standard)
  • Intelligent Provisioning (standard)
  • iLO Advanced (optional)
  • HP OneView Advanced (optional)
  • HP Insight Control (optional)

GPU: Integrated Matrox G200eH2 video standard

Ports: 5 USB 3.0 Ports, 1 Front, 2 Rear, 2 Internal
