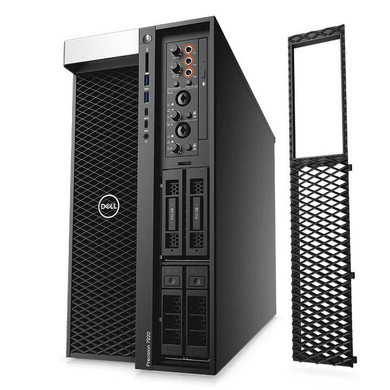

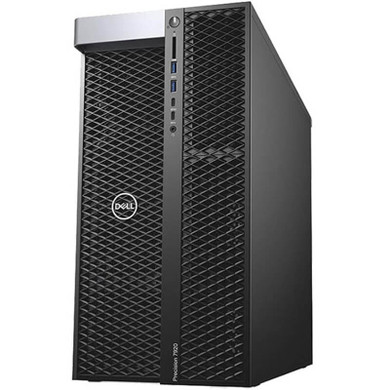

Precision Tower 7920 Workstation
The Dell Precision 7920 Tower is a dual-socket professional workstation designed for demanding engineering, simulation, rendering, data analysis, virtualization, software development, and content-creation workloads. Its Intel Xeon Scalable processor platform, DDR4 ECC memory, flexible drive bays, professional graphics support, and extensive PCIe expansion let you configure the system around your applications and budget.
Platform Highlights
- Single- or dual-socket Intel Xeon Scalable processor support
- DDR4 ECC memory for professional workloads
- Flexible storage and PCIe expansion
- Professional graphics options
Specifications
Processor: One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology.
Memory: Supports up to 1.5TB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with dual CPUs, 24 DIMM Slots (12 DIMMs per CPU). Note: Price for CTO are based on 2666Mhz Memory Modules.
Drive Bays: Front accessible FlexBays support up to 4 x 2.5"/3.5" SATA HDD/SSDs. up to 8 drives with optional (not included) rear FlexBays populated with integrated Intel SATA controller.
Storage Controller: Intel chipset SATA controller (6Gb/s) with 6 SATA ports plus 2 dedicated ports for optical drives. Intel RSTe software RAID 0,1,5,10.
Graphics: Support for 4 PCI Express x16 Gen 3 graphics cards - up to 750W with maximum of 3 x 250W double width graphics cards in 3 slots (dual CPU configuration) and up to 2 x 375W cards. 20VAC input supply recommended for 750W configurations and some restrictions apply
Operating System: Compatible with the following:
- Windows 10 Pro for Workstations (up to 4 Cores)
- Windows 10 Pro for Workstations (4 Cores Plus)
- Windows 10 Pro for Workstations Downgrade to Windows 7 (up to 4 Cores)
- Windows 10 Pro for Workstations Downgrade to Windows 7 (4 Cores Plus)
- Red Hat Enterprise Linux
- 7.3 Ubuntu Linux 16.04
- Suse Linux (SLES 12 SP2) supported
Power Supply: 1400W(input voltage 100VAC - 240VAC) -90% efficient (80PLUS Gold Certified) Externally accessible/removable/lockable
Dimensions: 50 Lbs, 21.46'' x 8.5'' x 17.13'' (L x W x H)
Networking: Intel i219 & i210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support
Slots: All slots PCIe Gen 3: (2) PCIe x16, (2) additional x16 slots with 2nd CPU; (1) PCIe x8 open ended, (1) x16 wired as x 4, (1) x16 wired as x1
Front Ports: (2) USB 3.1 Gen 1 Type A, (2) USB 3.1 Type C, (1) Universal Audio Jack, Up to 4 x 4 PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs

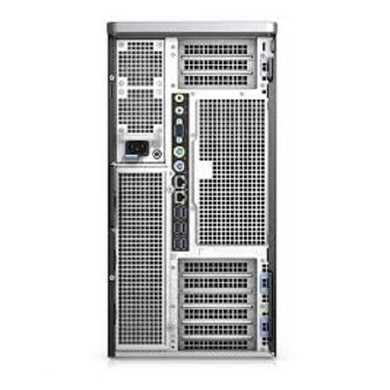

Rear Ports: (6) USB 3.1 Gen 1 Type A, (1) Serial, (2) RJ45 Network, (2) PS2, (1) Audio Line out, (1) Audio Line in/Microphone
Internal Ports: (1) USB 2.0,(1) 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports), (8) SATA @6Gb/s plus 1 SATA for optical
Audio Controller: Integrated Realtek ALC3234 High Definition Audio Codec (2 Channel). Optional Dell Digital Audio Interface (2Ch, 120dB S/N ratio - 5.25" Flex Bay option (USB interface) (future)
Speakers: Internal Speaker
Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.
*Systems are built to order and fully customizable. Please contact us directly to customize a system for you - REQUEST A QUOTE Please note that a stock photo is used and unit may differ depending on configuration.
